Comparing Different Types of Gunmetal Seat Gate Valves

Gunmetal seat gate valves are essential components in various industrial applications, providing reliable on-off control and regulating fluid flow. These valves find use in industries such as oil and gas, water treatment, and chemical processing due to their durability and resistance to wear and corrosion. Understanding the different types of gunmetal seat gate valves can help engineers and procurement professionals make informed decisions suited to specific application requirements. This article delves into the comparison of various types of gunmetal seat gate valves, focusing on their material composition, design characteristics, performance attributes, and suitability for different environments.

Material Composition and Properties

1. Standard Gunmetal:

Standard gunmetal is an alloy primarily composed of copper (around 58%), with significant amounts of tin (approximately 10%) and zinc (about 5%). The remaining composition includes smaller quantities of lead, iron, and other trace elements. This combination provides excellent machinability, corrosion resistance, and high strength. Gunmetal's inherent properties make it suitable for long-term use in aggressive environments, including seawater and acidic conditions.

2. High-Tin Gunmetal:

High-tin gunmetal contains a higher percentage of tin, typically around 12% to 14%, which enhances its hardness and wear resistance compared to standard gunmetal. This variant is often chosen for applications requiring increased durability and reduced maintenance. However, high-tin gunmetal can be more brittle, making it less suitable for highly impact-prone environments.

3. Bronze Gunmetal:

Bronze gunmetal is an alloy that substitutes some of the tin content with aluminum, resulting in improved mechanical properties and better corrosion resistance. The addition of aluminum helps in grain refinement during solidification, leading to enhanced toughness and ductility. Bronze gunmetal seat gate valves are particularly advantageous in marine applications where cavitation and erosion are concerns.

Design Characteristics

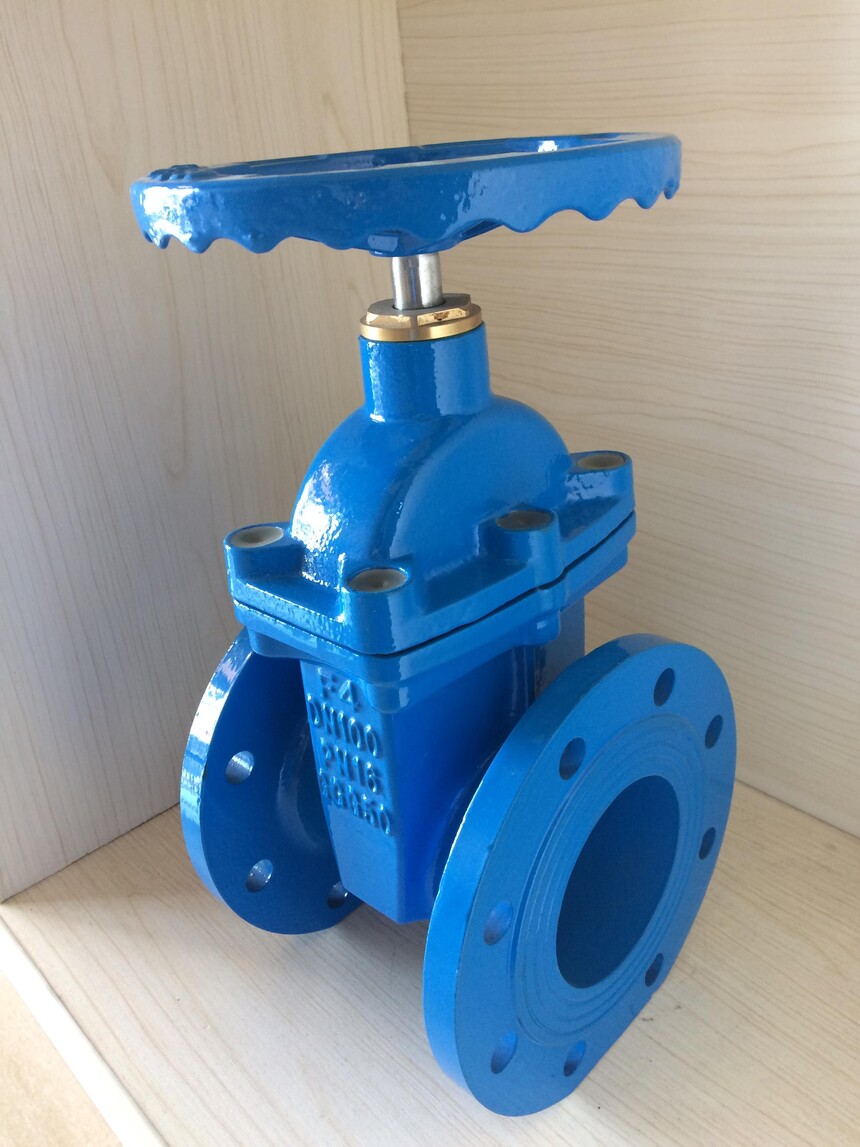

1. Flanged Gate Valves:

Flanged gate valves feature a flange on either side of the valve body, allowing them to bolt directly onto pipe flanges. This design facilitates easy installation and removal while providing a robust sealing surface. Flanged gate valves are commonly used in large-diameter pipelines and heavy-duty applications where frequent inspections and maintenance are necessary.

2. Threaded Gate Valves:

Threaded gate valves have threaded ends that allow for quick and easy connection to pipes. They are ideal for smaller pipelines and low-pressure applications where space is limited. The threaded design also ensures a secure connection, reducing the likelihood of leaks. However, repeated cycling can lead to thread wear, necessitating periodic maintenance or replacement.

3. Wafer Gate Valves:

Wafer gate valves are compact and designed to be installed between two pipe flanges. Their streamlined construction minimizes weight and space requirements, making them suitable for confined spaces. Wafer valves offer quick installation and removal without disturbing adjacent piping, providing convenience during system maintenance. However, their reduced thickness may limit their pressure rating compared to flanged gate valves.

Performance Attributes

1. Throttling Capacity:

Gate valves, regardless of the material or design, are primarily intended for full open or closed positions. However, they can throttle flow by partially opening the gate. Gunmetal seat gate valves exhibit superior throttling capabilities due to their smooth seating surfaces and precise manufacturing tolerances, ensuring minimal turbulence and pressure drop across the valve.

2. Durability and Maintenance:

The durability of gunmetal seat gate valves stems from their corrosion-resistant properties and ability to withstand wear and tear. High-tin gunmetal variants offer enhanced longevity in demanding applications but may require more careful handling to prevent brittle fractures. Regular maintenance practices, such as lubrication and inspection for signs of wear, are crucial to extending the service life of these valves.

3. Temperature Tolerance:

Gunmetal seat gate valves demonstrate excellent thermal stability, capable of withstanding high temperatures encountered in many industrial processes. However, prolonged exposure to extreme temperatures can affect the mechanical properties of the alloy, potentially leading to deformation or reduced performance over time. It is imperative to select a valve type based on the expected temperature range of the application.

Suitability for Different Environments

1. Marine Applications:

In marine environments, gunmetal seat gate valves excel due to their exceptional resistance to seawater corrosion and biofouling. Bronze gunmetal variants are particularly favored in such settings because of their enhanced toughness and reduced susceptibility to cavitation damage from saltwater-induced erosion.

2. Chemical Processing Industries:

Chemical processing plants benefit from gunmetal seat gate valves owing to their ability to handle a wide range of chemicals without degradation. The alloys' resistance to acids, alkalis, and other corrosive substances makes them reliable choices for controlling process fluids safely and efficiently.

3. Oil and Gas Industry:

The oil and gas industry relies heavily on gunmetal seat gate valves for their ability to function under high-pressure and high-temperature conditions typical of drilling and extraction operations. The valves' durability and reliability ensure uninterrupted operation in harsh downhole environments.

Conclusion

Selecting the appropriate type of gunmetal seat gate valve requires careful consideration of the material composition, design characteristics, performance attributes, and environmental suitability. Standard gunmetal offers a balanced combination of machinability and corrosion resistance, making it suitable for general-purpose applications. High-tin gunmetal provides enhanced hardness and wear resistance but must be handled carefully to avoid brittleness. Bronze gunmetal stands out in marine environments due to its improved toughness and resistance to cavitation.

From a design perspective, flanged gate valves offer robust connections for large-scale applications, while threaded gate valves cater to smaller pipelines with limited space. Wafer gate valves provide a compact solution for confined spaces without compromising on performance.

Performance-wise, gunmetal seat gate valves excel in throttling capacity, durability, and temperature tolerance, making them versatile options for various industrial sectors. Their suitability extends across marine applications, chemical processing industries, and the oil and gas sector, each benefiting from distinct advantages offered by different gunmetal compositions and designs.

In conclusion, understanding the nuances of gunmetal seat gate valves empowers engineers and procurement professionals to make informed decisions that optimize efficiency, safety, and cost-effectiveness in their respective operations. By carefully evaluating the specific needs of their application, they can select the gunmetal seat gate valve that best aligns with their operational requirements and environmental conditions.
